Product Details

Product Description

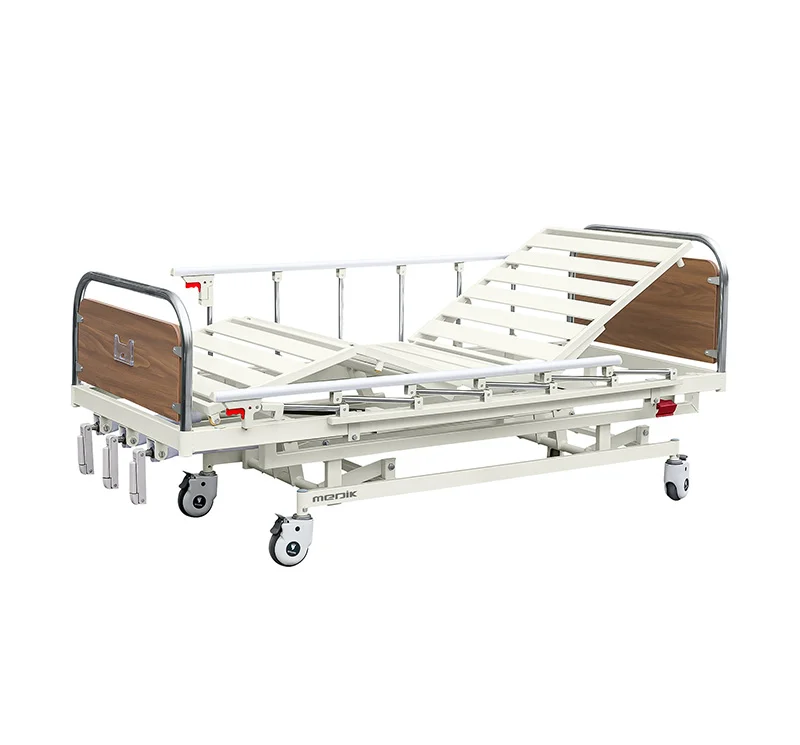

The BM51 hospital five-function manual bed is a versatile and reliable option for patient care, offering five adjustable functions including back-rest, knee-rest, Trendelenburg, reverse Trendelenburg, and adjustable height. Designed with safety and convenience in mind, it features foldable aluminum alloy side rails with an anti-pinch design, detachable PP head and foot boards with protective bumpers, and a durable cold-rolled steel mattress platform with waterproof and breathable holes. The bed is equipped with foldable manual cranks for easy adjustment, four lockable 5-inch casters for mobility, and a stainless steel IV pole with adjustable height and four hooks. With a safe working load of 250kg, the BM51 is built to provide comfort and support in a variety of clinical settings.

Main Features

· The BM51 hospital five-function manual bed offers five adjustable functions: back-rest adjustment up to 75°±10°, knee-rest adjustment up to 35°±10°, Trendelenburg and reverse Trendelenburg position at 12°±3°, and adjustable bed height ranging from 455mm to 745mm.

· The bed has six metal columns for side rails made from foldable aluminum alloy, designed with an anti-pinch feature for safety.

· The head and foot boards are made of PP material, detachable, and include corner bumpers for added protection.

· The mattress platform is made of cold-rolled steel with waterproof and breathable holes.

· A metal manual crank controls the bed's five functions and is foldable for convenience.

· It is equipped with four 5-inch single-sided casters, each with a foot brake.

· Includes drainage bag hooks for patient convenience.

· The stainless steel IV pole comes with four hooks, is height-adjustable, and includes a spring buffer system.



Technical Parameter

External Length

2190mm

External Width

1020mm

Bed Height Min

455mm

Bed Height Max

745mm

Mattress Platform

1925*900mm

Safe Working Load

250kg

Back-rest

75°±10°

Knee-rest

35°±10°

Trendelenburg

12°±3°

Reverse Trendelenburg

12°±3°







The related hospital three-function manual bed is the BM31 Three Cranks Hospital Bed. It offers essential functions, including backrest and knee-rest adjustments, along with height adjustment for basic patient care. The manual crank handles come with an ABS cover, making them easier to clean and maintain, ensuring hygiene and convenience in medical settings. This bed is a reliable choice for hospitals and clinics requiring fundamental patient positioning features.

Tags Five Function Hospital Bed
