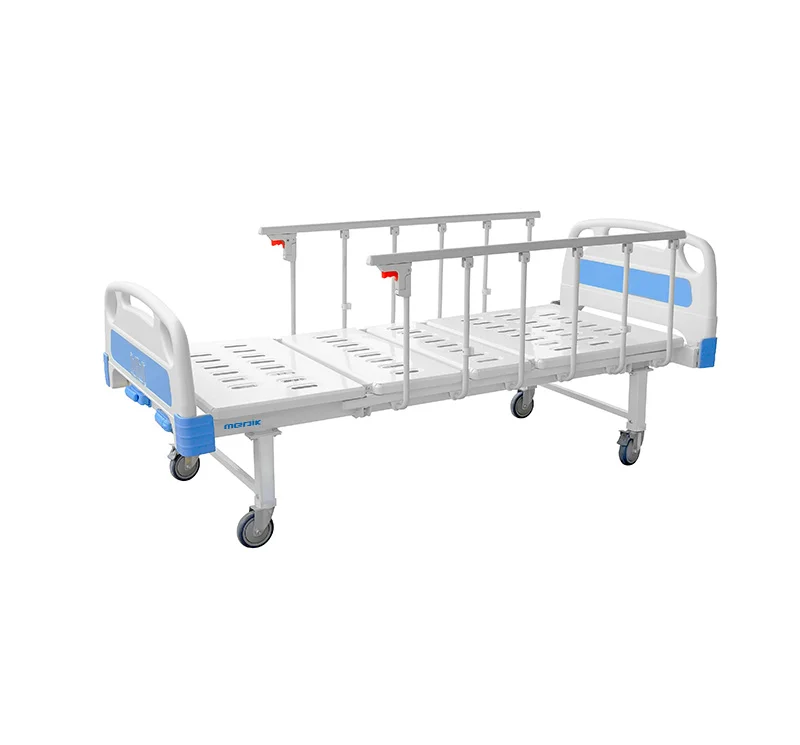

Model: YA-M3-3
Overall Size: 2160*960*500mm
Safe Working Load: 175kg
Function: Back section, Foot section, Trendelenburg
Color options: Green, Blue, Wood
Customization: Available
Certificate: CE / ISO
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts
Main Feature
- Backrest,Footrest and Trendelenburg movements by 3 cranks
- Epoxy coated mild steel bed frame
- 4 section bed board
- ABS side rails with angle indicator
- ABS head and foot board with holes for moving the bed easily
- Dia125mm noiseless castors ,all with individual brakes
- Bumper castors on 4 corners for protection
Accessories
- IV pole with adjustable height
- Drainage hooks at the side of the bed
Technical parameter
| Model | YA-M3-3 |
| Overall size（L*W*H） | 2160*960*500mm (85″ x 38″ x 19.6″) |
| Back section adjustable | 0-75° |
| Foot section adjustable | 0-40° |
| Trendelenburg | 0-12° |
| Caster | Dia125mm ( 5″ ) |
| Safe working load | 175kg（385 Ibs） |
